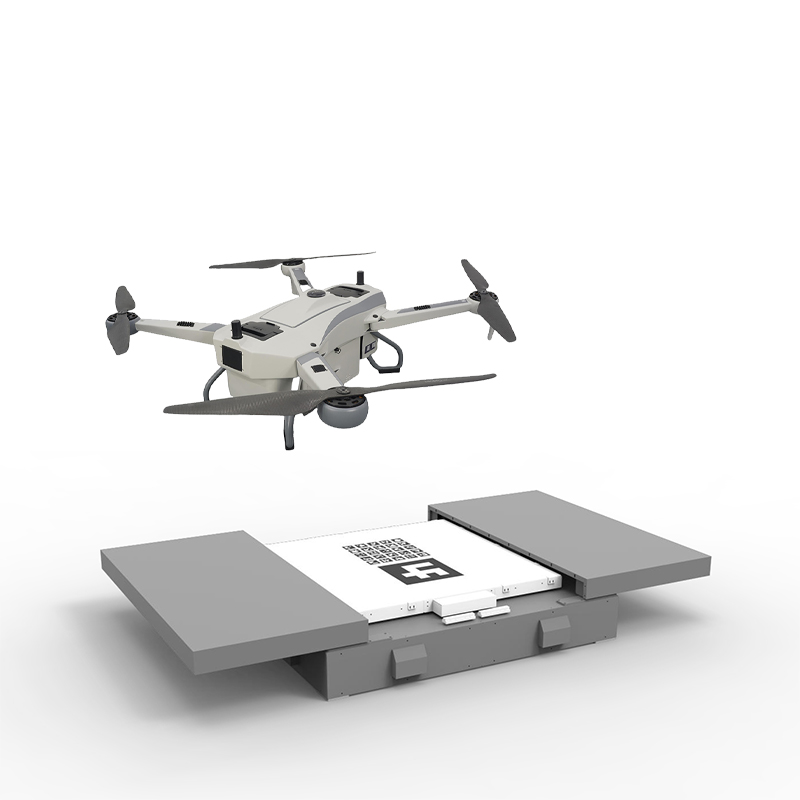

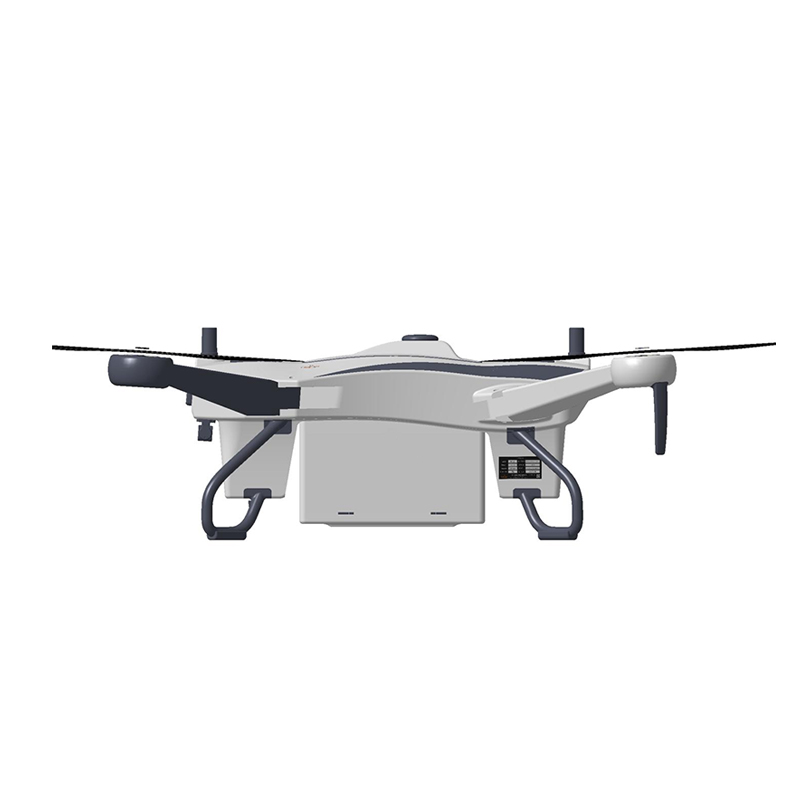

/ Дом /Высокотехнологичное оборудование / CXXM0H4115 Electric multi-purpose industrial-grade quad-rotor drone,
The flight system has multiple redundant designs to achieve excellent performance and high safety; the fuselage is made of the latest composite materials; folding arms; intelligent battery hot-swap; the center of gravity is embedded with a large payload compartment, which can carry medium- and long-range laser radar, oblique photography five-lens, orthographic gimbal camera, optical pod, logistics box, searchlight and other drone payloads, providing the best protection for the payload, and there is no need to disassemble the payload for withdrawal and transfer, providing users with a safe and convenient use experience.
Technical features

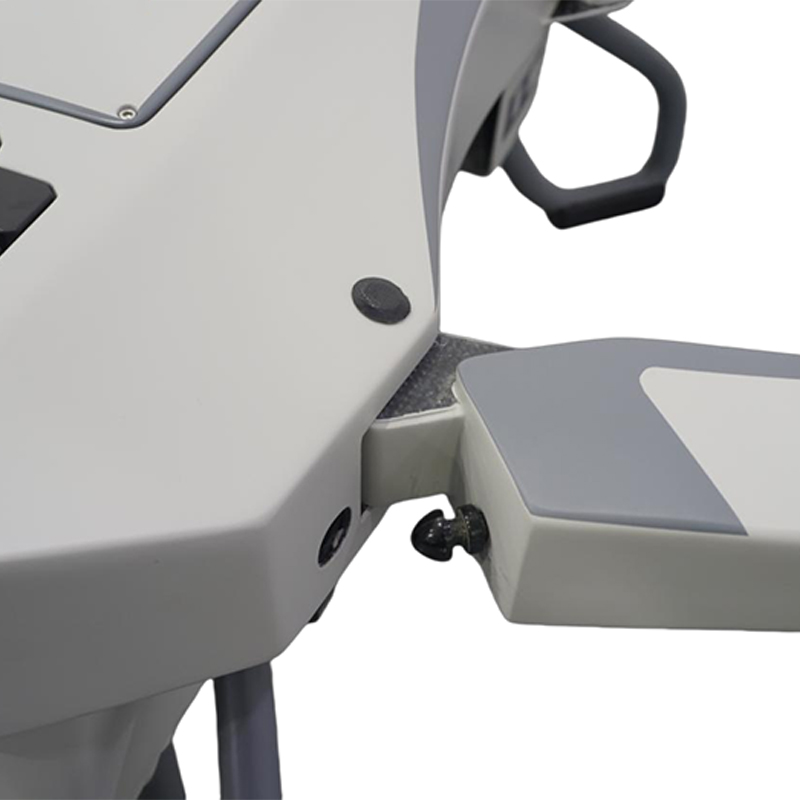

Folding arms, built-in payload compartment, millimeter wave obstacle avoidance
Recommended scenarios
15km logistics, pipeline inspection, geographic surveying and mapping
System parameters
| Dimensions | 1250×1250×330mm | Wheelbase | 1150mm |
| Standard load | 3kg | Standard endurance | >50min |
| Maximum load | 5kg | Maximum endurance | >80min |
| Flight speed | 0 ~18m/s | Maximum ceiling | 5000m |
| Maximum take-off weight | 18kg | Maximum wind resistance | 12m/s |
| Battery | 12s 45.6V 16000mAh*2 | Differential mode | RTK/PPK |
| Operating temperature | -20~45℃ | Packing box size | 770×540×360mm |
