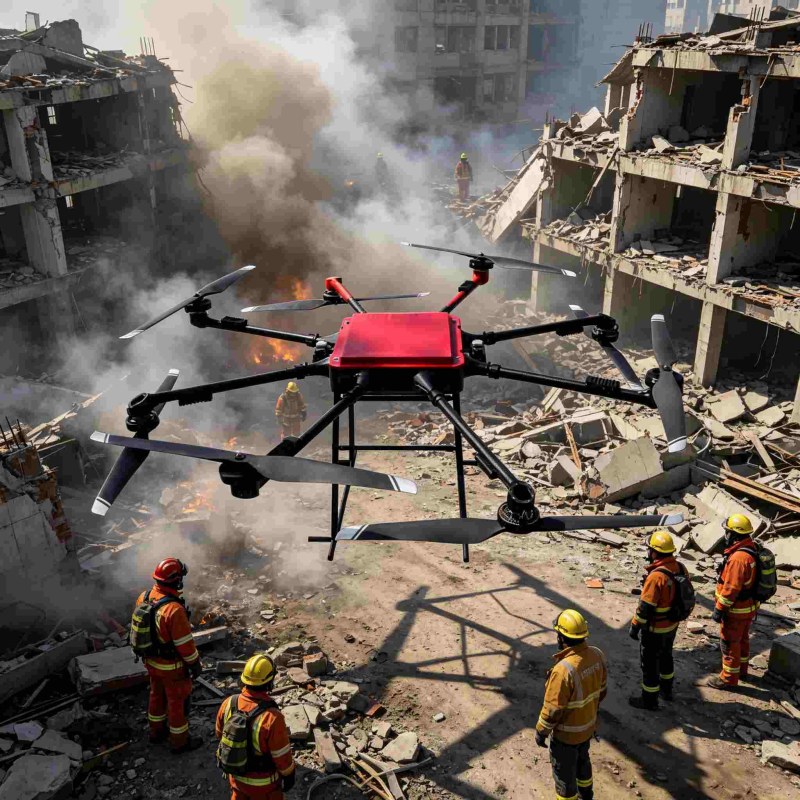

firefighting drone connecting to fire truck water supply for building fire

tri-optics day night reconnaissance camera with target location capability

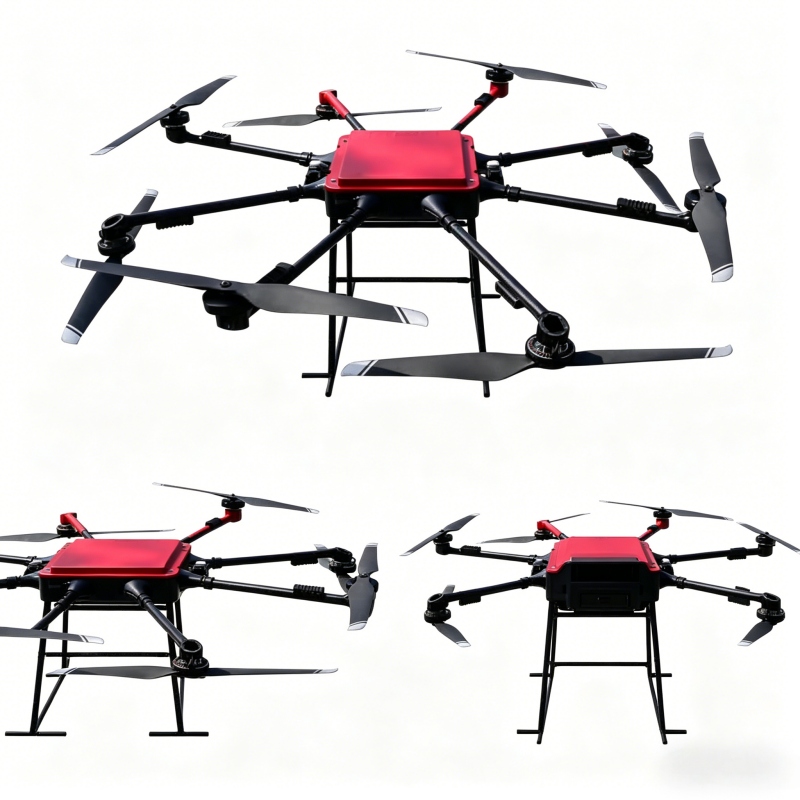

firefighting and delivery drone 100kg payload heavy lift UAV

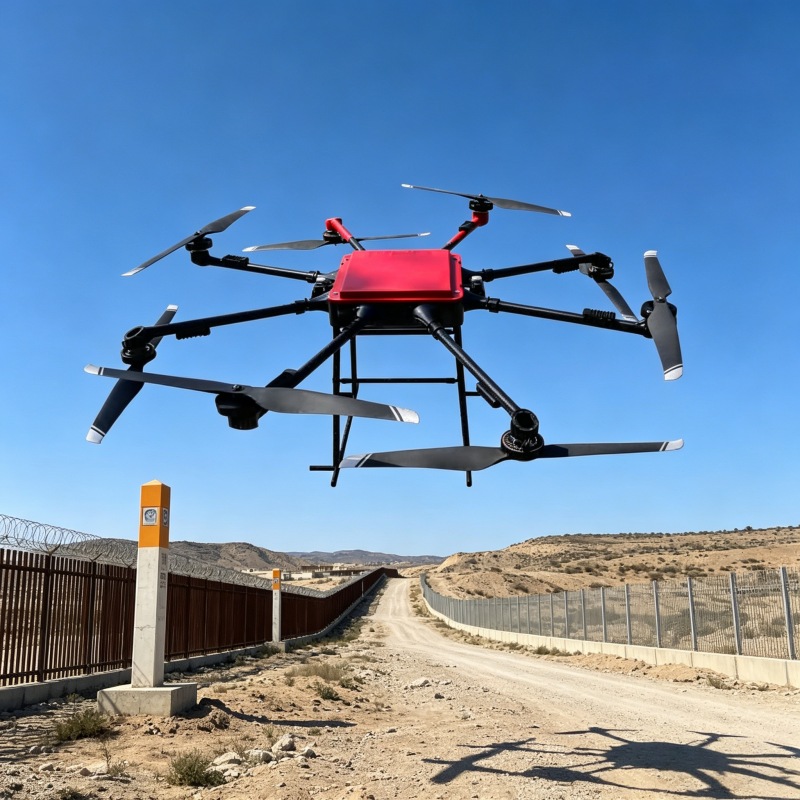

100kg cargo drone operating in mountain and desert for emergency delivery

UAV drawing water from lake for forest fire fighting operation

ACD-10030 100kg Payload Firefighting and Delivery Drone

ACD-10030 firefighting and delivery drone – 100kg payload capacity for cargo or 4×20kg firefighting bombs. Tri-optics camera for day/night reconnaissance and target location. Connects to fire trucks or natural water sources. Ideal for building and forest fire fighting.

Inquiry now

ВВЕДЕНИЕ ПРОДУКТА

SN	Item	Parameter
1	Body material	Carbon fiber
2	Symmetrical motor wheelbase	3300mm
3	Size	Unfolded size: 4400x4400x1200mm Folded size: 1600x1600x1200mm Packaging size: 1700x1700x1800mm
4	Empty weight	60 ± 1kg (without batteries)
5	Max takeoff weight	≥230kg
6	Max working load	100kg
7	Full load flight time (100kg)	≥25min (Altitude =500m, 25 ℃)
8	Max level flight speed	18m/s
9	Cruising speed	15m/s
10	Max working altitude	6000m
11	Wind tolerance	≤14m/s

12	GPS hover accuracy	Horizontal direction: ±0.2m Vertical direction: ±0.1m
13	Orientation	RTK dual antenna orientation, no magnetic compass calibration required
14	Remote control distance	20km (depending on the local electromagnetic environment)
15	Battery	14S 35AH*6pcs
16	Anti-interference	1. Standard forward obstacle avoidance 2. Standard downward blind landing support 3. Standard satellite signal loss anti-interference 4. Standard route anti-interference
17	Delivery support	1. A,B points dual control delivery mode 2. Relay mode mission aircraft landing delivery mode 3. Blind landing delivery

100kg Maximum Payload – Carries 100kg of cargo for delivery missions or four 20kg firefighting bombs for fire suppression.
Dual Mission Capability – Single platform for delivery and firefighting – switch roles as mission demands.
Firefighting Bomb Deployment – Four 20kg bombs per sortie – knock down building and forest fires fast.
Water Spray from Any Source – Connects to fire truck or draws water from lakes, pools, and natural sources for continuous firefighting.
Tri-Optics Reconnaissance Camera – Day and night surveillance with visible, thermal, and low-light sensors.
Precision Target Location – Accurately locates target points for bomb deployment or water spraying.
All-Terrain Operation – Reliable performance in mountains, basins, sandy land, grassland, and desert.
Building & Forest Fire Optimized – Purpose-built for urban structure fires and wildland firefighting missions.

Ideal for:
✔ Building fire fighting (high-rise, warehouse, industrial)
✔ Forest and wildland fire suppression
✔ Emergency cargo delivery to inaccessible areas
✔ Fire surveillance and reconnaissance
✔ Mountain, basin, desert, and grassland operations
✔ Disaster response and humanitarian aid
