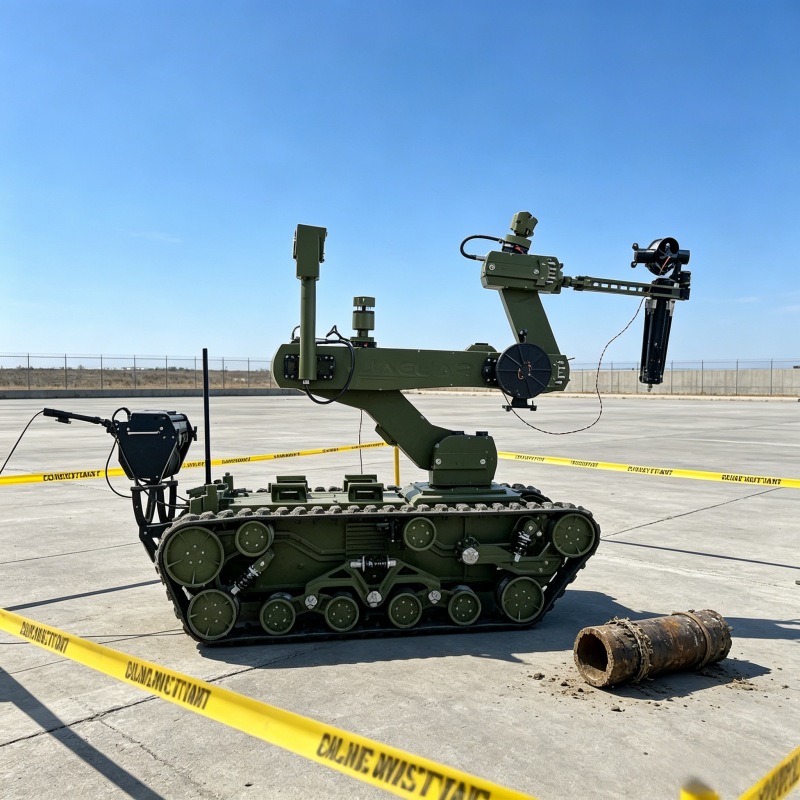

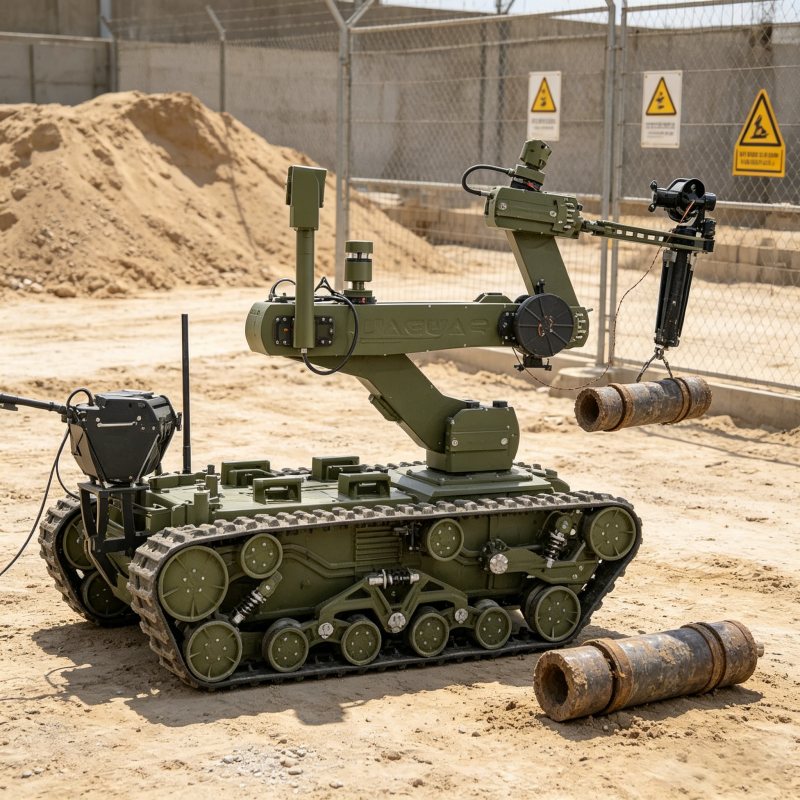

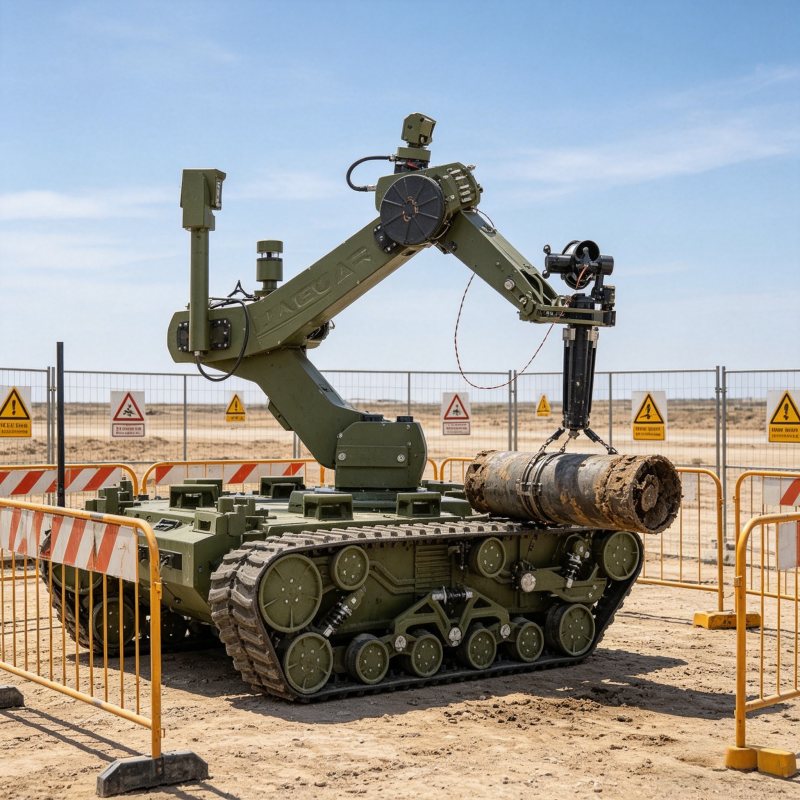

Mammoth 380 7-DOF Arm 25kg Extended Lift Heavy UXO Robot

Weight: 380kg | Size: 1630×843×1010mm

Speed: 6.5km/h | Obstacle: ≥400mm | Ditch: ≥600mm | Slope: ≥70% (~35°)

Arm lift: 25kg (full extend) / 75kg (retracted)

Vertical reach: ≥2.2m | Horizontal: ≥2.6m

Claw: 6–350mm

Control: fiber (200m), cable (200m), wireless (≥500m)

Cameras: 7, main camera 30× zoom

Runtime: ≥3.2h | Console: ≥14" screen

• Mammoth 380 – Named for Size and Power – 380kg of ordnance-disposal muscle. Built for the biggest UXO threats.

• 25kg at Full Extension – 2.6m horizontal reach. 2.2m vertical reach. Handle large bombs without putting the robot in the hole.

• 75kg Retracted – Raw Power – Close-in strength for lifting heavy UXO, naval mines, and aircraft bombs.

• 350mm Claw – Big Enough for Big Bombs – Opens wide for 500lb ordnance. Closes to 6mm for precision wire cutting.

• 7-DOF Arm – Human-Like Dexterity – Reach around obstacles. Manipulate from any angle. Complex disposal made simple.

• Fiber Optic Core – EMI Immune – 200m of interference-free control. Tamper-proof. No signal loss.

• Triple Control – No Single Point of Failure – Fiber (200m) + Cable (200m) + Wireless (500m+).

• See Everything from Safe Distance – 7 cameras. Main camera with 30× optical zoom. Read ordnance markings from 500m away.

• Laser Positioning – Precision Disposal – Know exactly where the arm is. Place disruptors precisely. Document positions.

• Conquer the Crater – 400mm obstacles. 600mm ditches. 70% slopes. Built for bomb craters and battlefields.

• 3.2+ Hours – Extended UXO Missions – Long enough for complex disposal operations.

• 14" Command Console – Big screen. Clear picture. Total control.

Ideal for :
✔ Unexploded ordnance (UXO) clearance teams
✔ Naval explosive ordnance disposal (EOD) units
✔ Air force bomb disposal squadrons
✔ Range clearance and range safety
✔ Post-conflict ordnance removal
✔ Industrial demolition and blasting
✔ Homeland security heavy response

Q1: Why is it called Mammoth 380?

A: Mammoth for size and power – 380kg of UXO-disposal muscle. Built for the biggest ordnance threats.

Q2: How strong is the arm at full extension?

A: 25kg lift at 2.6m horizontal or 2.2m vertical reach – handle large bombs without putting the robot in the hole.

Q3: How wide does the claw open?

A: 350mm maximum – wide enough for 500lb aircraft bombs and naval mines. Closes to 6mm for precision work.

Q4: Why fiber optic control?

A: Immune to electromagnetic interference. Tamper-proof. No signal loss. Essential for sensitive sites and electronic warfare environments.

Q5: What are the control options?

A: Fiber optic (200m), cable (200m), and wireless (500m+) – triple redundancy for any environment.

Q6: How many cameras does it have?

A: 7 cameras including main camera with 30× optical zoom – read ordnance markings from safe distance.
