Compact 380g UAV gimbal camera featuring dual 48MP EO cameras, 640×512 thermal imaging, laser rangefinder, AI target tracking, and MAVLink compatibility for surveillance, inspection, and emergency response.

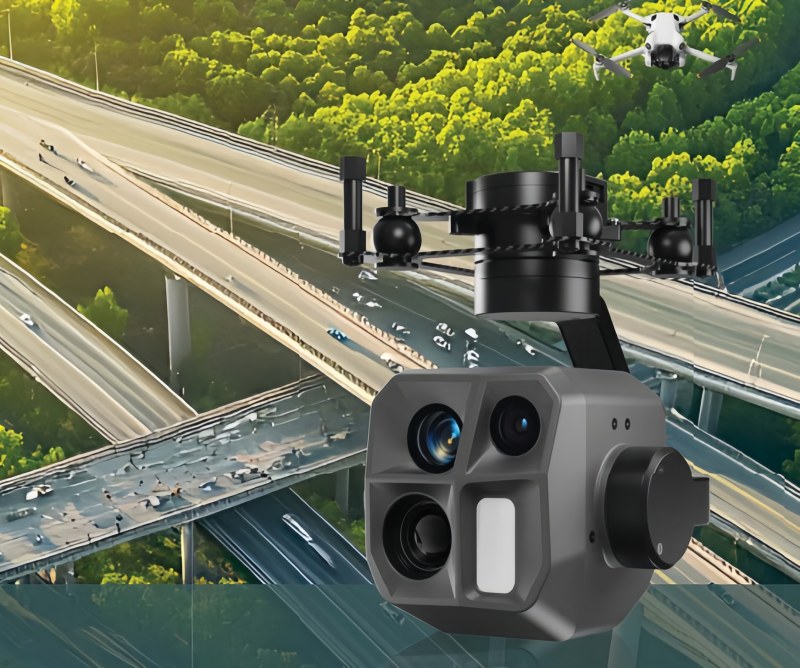

The Micro 3-Axis 4-Sensor Gimbal Camera is a lightweight multi-sensor payload designed for professional drone applications where size, weight, and imaging performance are equally important. Combining four integrated sensors with a high-precision 3-axis stabilization system, it delivers reliable aerial intelligence in a compact package weighing only 380g.
Built for micro and small UAVs, the system supports visible imaging, thermal observation, laser ranging, and AI-assisted target tracking, allowing operators to collect accurate real-time data in complex environments.
Whether deployed for infrastructure inspection, public safety, search and rescue, or tactical reconnaissance, this payload provides stable imagery and intelligent situational awareness throughout the mission.
Capture distant targets with exceptional detail using a high-resolution zoom camera that combines optical and hybrid zoom.
Highlights
Suitable for long-range surveillance, inspection, and reconnaissance.
The wide-angle camera expands situational awareness by covering a larger viewing area in a single frame.
Features
Ideal for mapping, route monitoring, emergency response, and aerial surveys.
Integrated thermal imaging enables reliable target detection regardless of lighting conditions.
Specifications
Thermal imaging is particularly valuable for:
Measure target distance quickly and accurately without additional equipment.
Performance
Applications include:
The onboard AI processor transforms raw imagery into actionable information by automatically detecting and tracking objects in real time.
These functions reduce operator workload while improving tracking accuracy and operational efficiency.
A precision servo-controlled gimbal compensates for aircraft movement, maintaining stable imagery even during aggressive flight maneuvers or windy conditions.
The camera is engineered for fast installation on professional drone platforms.
Its standardized interfaces simplify integration with a wide range of flight control systems and ground stations.
| Specification | Details |
|---|---|
| Stabilization | 3-Axis Servo Gimbal |
| Weight | 380 g |
| Dimensions | 90 × 105 × 124 mm |
| Power Supply | 10–26 V |
| Zoom Camera | 48MP, 3.3× Optical Zoom, 11× Hybrid Zoom |
| Wide Camera | 48MP |
| Thermal Camera | 640 × 512, 12 μm |
| Laser Rangefinder | 5–1200 m |
| Control Interface | UART, Ethernet (UDP) |
| Video Output | Ethernet |
| Storage | Micro SD Card (Up to 128GB) |
| Protocol | MAVLink Compatible |
The Micro 3-Axis 4-Sensor Gimbal Camera is optimized for lightweight aerial platforms, including:
Monitor sensitive areas with synchronized visible-light and thermal imaging for enhanced situational awareness.
Locate missing persons or heat sources quickly using thermal imaging combined with AI-assisted target detection.
Inspect power grids, solar farms, pipelines, communication towers, and industrial facilities with stabilized high-resolution imagery.
Support firefighting, disaster assessment, and public safety operations with real-time aerial intelligence.
Observe forests, wildlife, and protected areas while collecting both visual and thermal data.
Yes. At only 380g, it is specifically designed for micro and small UAVs where payload weight is limited.
Yes. The integrated 640 × 512 thermal camera allows target detection in darkness, smoke, haze, and other low-visibility conditions.
Yes. Built-in AI algorithms automatically identify and track moving targets while providing real-time positioning information.
The integrated laser rangefinder measures targets from 5 meters to 1,200 meters, depending on operating conditions.
Yes. The camera supports the MAVLink communication protocol, making it compatible with many commercial and professional UAV platforms.
Looking for a compact multi-sensor imaging payload for your UAV project?
Our engineering team provides OEM & ODM customization, payload integration support, and complete drone imaging solutions for defense, emergency response, industrial inspection, surveying, and public safety applications.
