Professional 2-axis UAV gimbal camera featuring a 2MP EO sensor, 30× optical zoom, 60× hybrid zoom, AI target tracking, full-color night vision, and MAVLink compatibility for surveillance and inspection.
The S108VB-NNV230T000L000 is a compact yet powerful 2-axis UAV gimbal camera built for applications that demand long-range visual observation and intelligent image analysis. Equipped with a 30× optical zoom lens, advanced AI image processing, and full-color night vision, it provides clear, stable imagery across a wide range of operating environments.
With a weight of only 500g, the camera can be integrated into multirotor, VTOL, and fixed-wing UAVs, making it suitable for aerial surveillance, infrastructure inspection, emergency response, environmental monitoring, and security operations.
The integrated electro-optical camera combines high-quality imaging with powerful zoom performance, allowing operators to quickly switch from wide-area monitoring to detailed target inspection.
Unlike conventional low-light cameras, the S108VB-NNV230T000L000 provides full-color imaging in low-light environments, improving visibility and target identification during evening and nighttime operations.
Ideal for:
Integrated AI algorithms automatically analyze live video streams to improve mission awareness and reduce manual camera operation.
These functions allow operators to focus on mission execution while the camera continuously tracks selected objects.
The precision-engineered 2-axis stabilization platform minimizes aircraft vibration, delivering smooth and reliable video during movement, hovering, or long-distance zoom operations.
The camera supports common communication protocols used in professional UAV systems, making installation straightforward for manufacturers and system integrators.

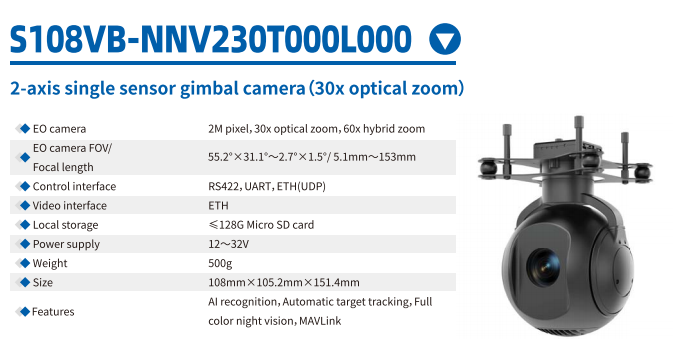

| Item | Specification |
|---|---|
| Gimbal Type | 2-Axis Stabilized Gimbal |
| Camera Sensor | 2MP EO Camera |
| Optical Zoom | 30× |
| Hybrid Zoom | 60× |
| Focal Length | 5.1–153 mm |
| Field of View | 55.2° × 31.1° to 2.7° × 1.5° |
| Power Supply | 12–32 V DC |
| Weight | 500 g |
| Dimensions | 108 × 105.2 × 151.4 mm |
| Control Interface | RS422, UART, Ethernet (UDP) |
| Video Interface | Ethernet |
| Storage | Micro SD Card (Up to 128GB) |
| Protocol | MAVLink Compatible |
The S108VB-NNV230T000L000 is suitable for a wide range of unmanned aerial systems, including:
Monitor extensive areas and identify distant targets using high-powered optical zoom and intelligent tracking.
Inspect transmission towers, bridges, pipelines, wind turbines, and industrial facilities from a safe distance.
Provide aerial support for law enforcement, disaster response, traffic monitoring, and emergency management.
Monitor forests, rivers, wildlife, and protected areas without disturbing the surrounding environment.
Conduct routine inspections and perimeter surveillance for factories, ports, energy facilities, and logistics centers.
The camera features 30× optical zoom and 60× hybrid zoom, enabling clear observation of distant objects while maintaining excellent image quality.
Yes. The integrated full-color night vision technology captures color images under low-light conditions, improving visibility compared to conventional night cameras.
Yes. Built-in AI algorithms automatically recognize and follow selected targets, making it suitable for surveillance and inspection missions.
The camera is compatible with multirotor, VTOL, and fixed-wing UAV platforms that support payloads of approximately 500g or more.
Yes. The camera supports the MAVLink communication protocol, enabling straightforward integration with many commercial and industrial flight control systems.
Whether you are developing a surveillance drone, an industrial inspection platform, or an intelligent security UAV, the S108VB-NNV230T000L000 provides reliable long-range imaging and AI-assisted observation. We offer OEM/ODM services, system integration support, and customized payload solutions for manufacturers, government agencies, and enterprise customers.

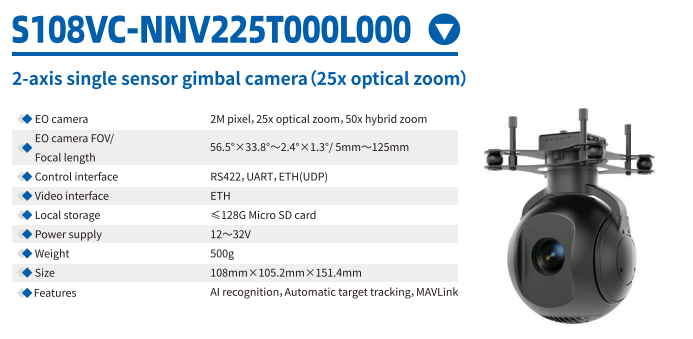

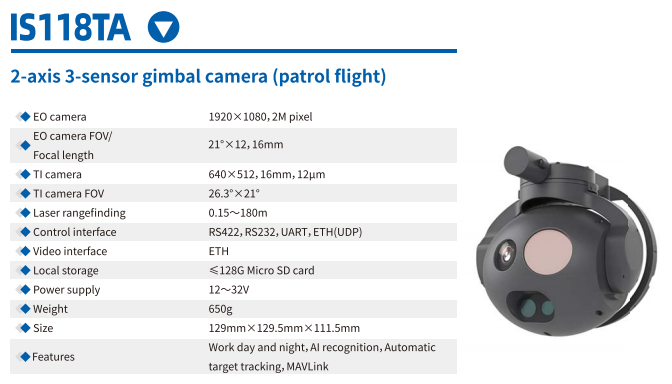

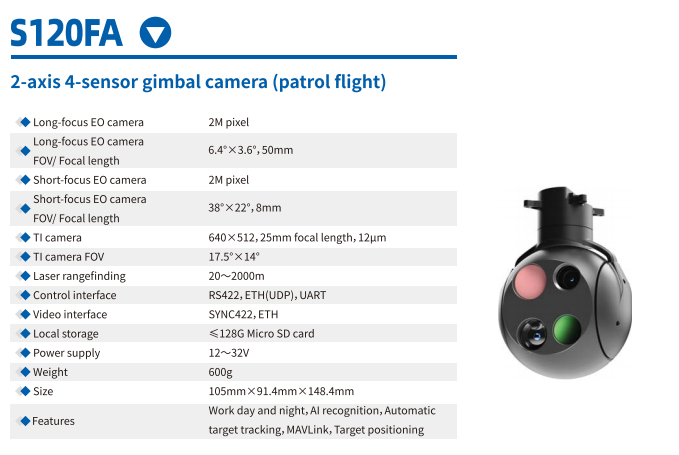

Other recommended models：
