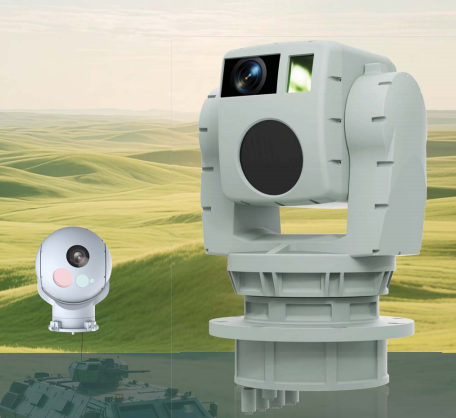

The Multi-Sensor EO/IR Gimbal Turret Series is designed to provide high-performance electro-optical observation, thermal imaging, laser ranging, and intelligent target tracking for professional surveillance and reconnaissance applications. Combining visible-light imaging, infrared thermal cameras, precision laser rangefinders, and AI-powered image processing into a compact stabilized payload, these systems deliver reliable day-and-night situational awareness across land, air, and maritime environments.
The series includes four models optimized for different payload capacities and mission requirements, from lightweight UAV integration to long-range maritime surveillance.
The Optical Turret Series integrates multiple sensing technologies into a stabilized platform featuring:
These payloads are suitable for unmanned aircraft, unmanned ground vehicles, patrol vessels, border monitoring systems, and mobile surveillance platforms.

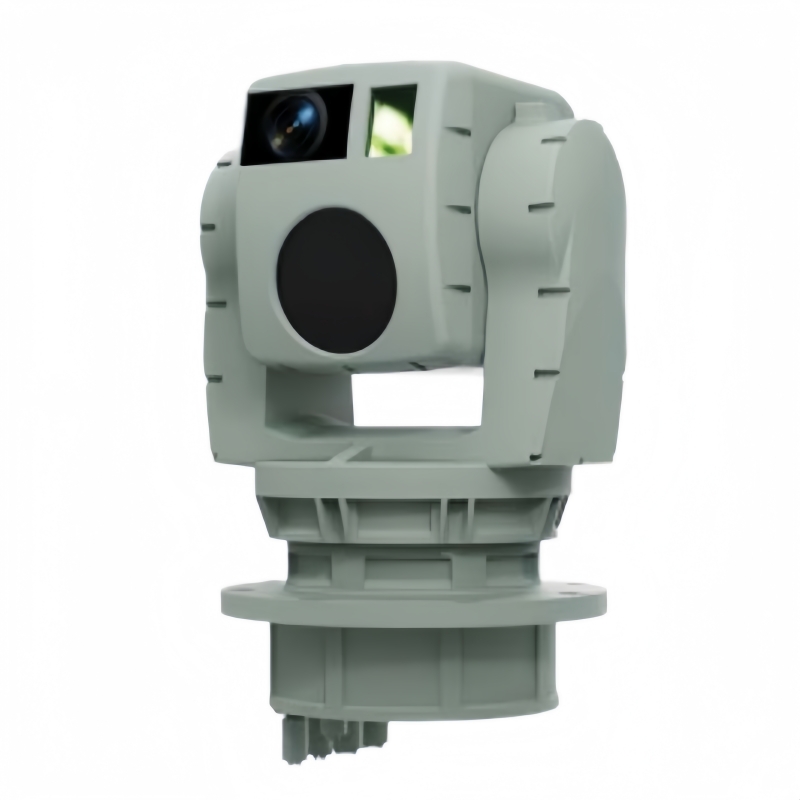

Designed for lightweight aerial platforms where low weight and long observation capability are essential.
| Specification | Details |
|---|---|
| EO Camera | 2MP, 30× Optical Zoom, 60× Hybrid Zoom |
| EO Lens | 4.3–129mm |
| Thermal Camera | 640×512, 15μm |
| Thermal Lens | 18–275mm Continuous Zoom |
| Laser Rangefinder | 50–8,000m |
| Video Output | HD-SDI, Ethernet |
| Control Interface | RS422, Ethernet (UDP) |
| Storage | Up to 128GB Micro SD |
| Power Supply | 20–32V DC |
| Weight | 10kg |
| Dimensions | 260 × 260 × 360mm |
Recommended Platforms

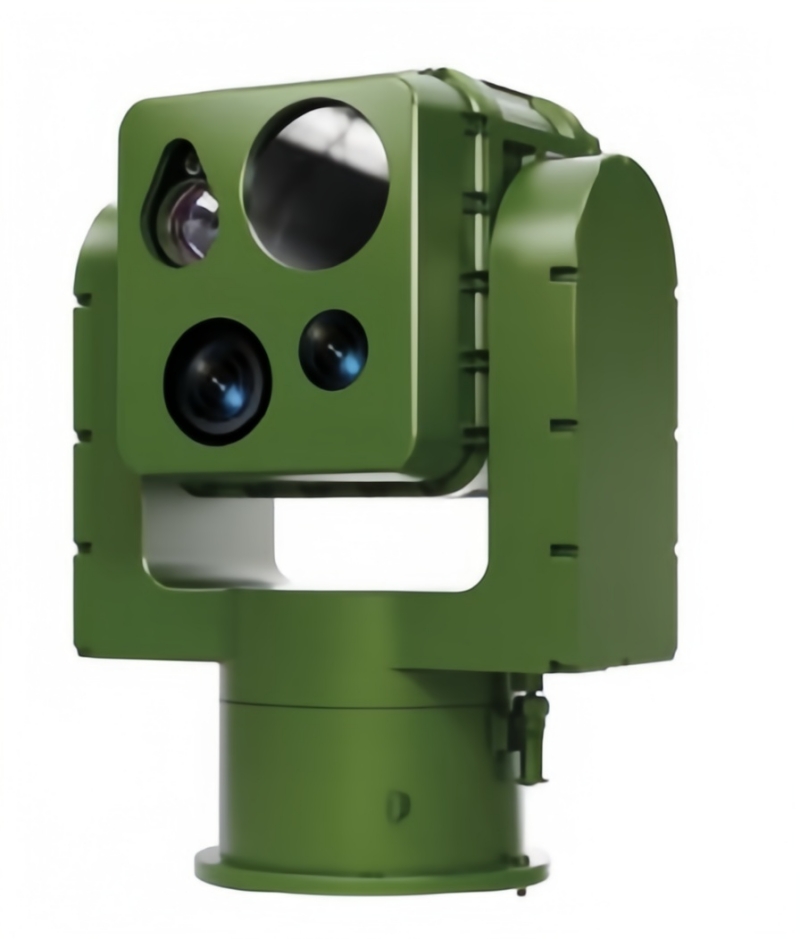

A balanced solution offering high-performance imaging with moderate payload weight.
| Specification | Details |
|---|---|
| EO Camera | 2MP, 30× Optical Zoom |
| EO Lens | 4.3–129mm |
| Thermal Camera | 640×512, 12μm |
| Thermal Lens | 25–100mm Continuous Zoom |
| Laser Rangefinder | 50–8,000m |
| Video Output | HD-SDI, Ethernet |
| Control Interface | RS422, Ethernet |
| Storage | Up to 128GB Micro SD |
| Power Supply | 20–32V DC |
| Weight | 15kg |
| Dimensions | 260 × 260 × 390mm |
Recommended Platforms

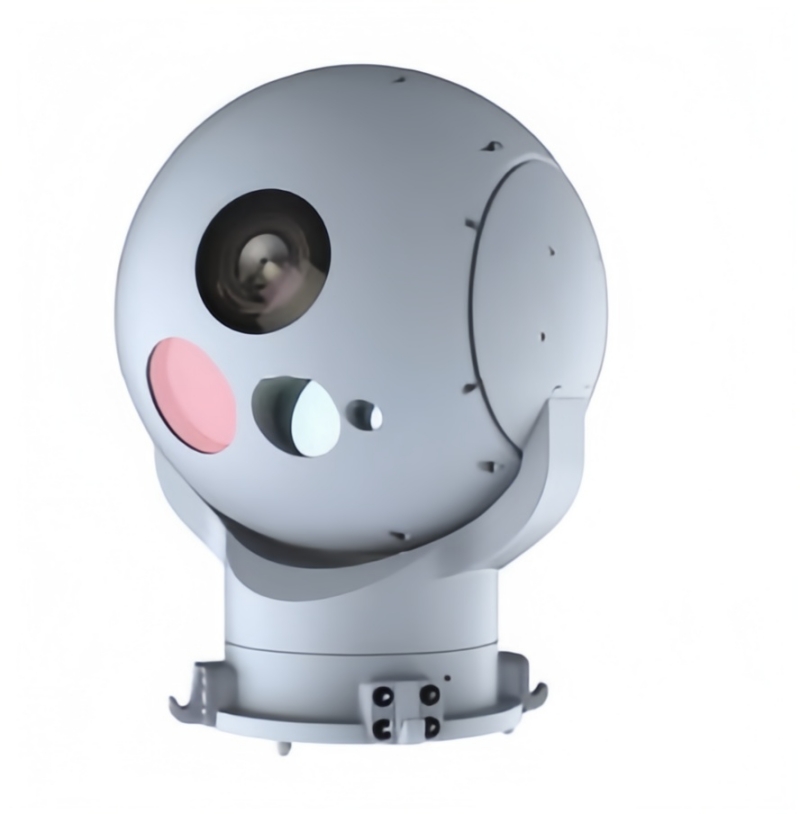

Built for missions requiring exceptional thermal sensitivity and long-distance observation.
| Specification | Details |
|---|---|
| EO Camera | 2MP, 30× Optical Zoom |
| Wide-Angle EO Camera | 2MP Fixed Lens |
| Thermal Camera | 640×512 Cooled Detector |
| Thermal Lens | 15–300mm Continuous Zoom |
| Laser Rangefinder | 100–10,000m |
| Video Output | HD-SDI, Ethernet |
| Control Interface | RS422, Ethernet |
| Storage | Up to 128GB Micro SD |
| Power Supply | 20–32V DC |
| Weight | 27kg |
| Dimensions | 481.5 × 347 × 257mm |
Recommended Platforms

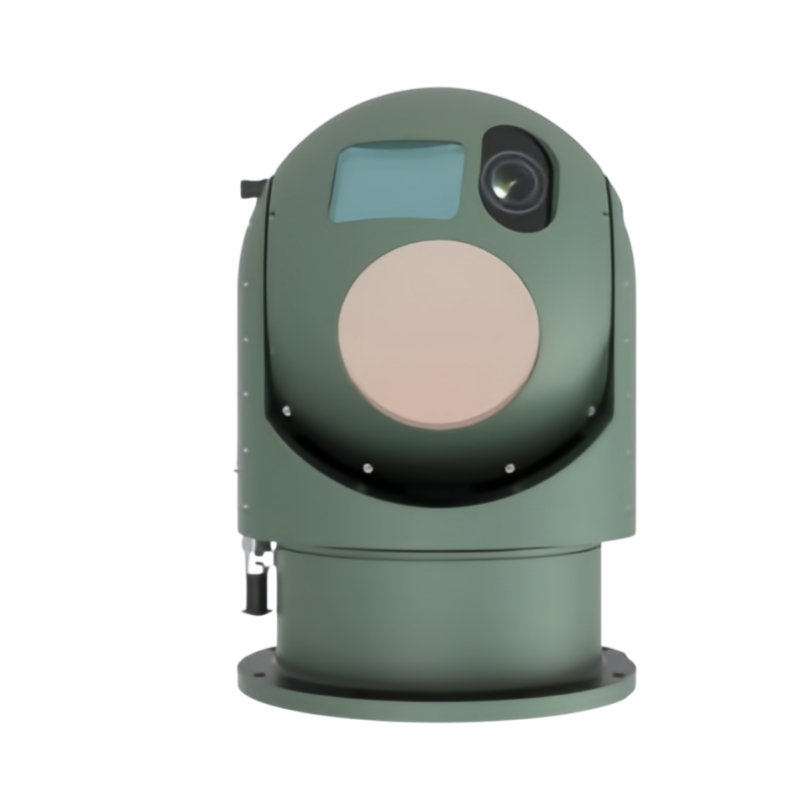

Designed for larger platforms that require powerful long-range observation and tracking.
| Specification | Details |
|---|---|
| EO Camera | 2MP, 20× Optical Zoom |
| Thermal Camera | 640×512, 12μm |
| Thermal Lens | 20–120mm Continuous Zoom |
| Laser Rangefinder | 20–6,000m |
| Video Output | HD-SDI, Ethernet |
| Control Interface | RS422, Ethernet |
| Storage | Up to 128GB Micro SD |
| Power Supply | 20–32V DC |
| Weight | 40kg |
| Dimensions | 457 × 369 × 329.5mm |
Recommended Platforms
Each gimbal integrates multiple sensors to provide complementary observation performance.
The daylight imaging channel features:
The zoom system allows operators to quickly transition between wide-area monitoring and detailed target inspection.
The infrared channel provides reliable thermal imaging regardless of ambient lighting.
Available configurations include:
Thermal imaging enables effective monitoring in:
Built-in image processing algorithms enhance operator efficiency through automated functions.
The onboard processor assists in identifying and classifying potential targets within the scene.
Once a target is selected, the stabilization system continuously follows its movement while reducing operator workload.
Integrated positioning functions improve situational awareness by providing accurate target location data for surveillance and mission planning.
Every model includes an integrated or optional laser rangefinder for precise distance measurement.
Depending on the model, ranging capability extends up to 10 kilometers, making the system suitable for long-range observation and target localization.
Benefits include:
High-precision servo stabilization minimizes image vibration caused by aircraft, vehicles, or marine platforms.
The stabilized platform provides:
This makes the payload suitable for both stationary and mobile platforms.
The turret series supports integration with a wide variety of surveillance platforms.
Standard interfaces include:
These interfaces simplify installation into existing unmanned or manned systems.
The systems are engineered for continuous outdoor deployment.
Design highlights include:
| Model | Weight | Thermal Camera | Laser Range | Best Platform |
|---|---|---|---|---|
| ZT260TE | 10kg | Uncooled 640×512 | 8km | Small UAVs |
| ZT260TA | 15kg | Uncooled 640×512 | 8km | Medium UAVs & UGVs |
| ZT068FA | 27kg | Cooled 640×512 | 10km | Large UAVs & Maritime Platforms |
| ZT055TA | 40kg | Uncooled 640×512 | 6km | Heavy UAVs & Fixed Systems |
The Multi-Sensor EO/IR Turret Series supports a wide range of observation missions.
Suitable for rotary-wing and fixed-wing unmanned aircraft requiring stabilized electro-optical observation.
Long-distance surveillance of border regions, remote infrastructure, and critical facilities.
Supports coastal observation, offshore patrol, harbor monitoring, and vessel tracking.
Provides stabilized imaging for patrol vehicles and mobile surveillance systems.
Used for inspection of power lines, pipelines, transportation networks, and industrial facilities.
Supports search operations, disaster assessment, and emergency monitoring in low-visibility conditions.
| Advantage | Benefit |
|---|---|
| Multi-Sensor Integration | Visible, thermal, and laser ranging in one platform |
| AI Image Processing | Intelligent recognition and automatic tracking |
| Long Observation Range | Laser ranging up to 10km |
| High Optical Zoom | Up to 30× optical and 60× hybrid zoom |
| Continuous Thermal Zoom | Flexible observation at multiple distances |
| Two-Axis Stabilization | Stable imaging on moving platforms |
| Modular Design | Easy integration across different systems |
| Industrial Reliability | Built for demanding field environments |
We provide complete customization services for system integrators, UAV manufacturers, and security solution providers.
Available services include:
The ZT260TE is the lightest model at only 10kg, making it ideal for small UAVs and portable surveillance platforms.
The ZT068FA uses a cooled thermal detector, offering higher thermal sensitivity and improved long-range detection performance. The remaining models use uncooled detectors that provide an excellent balance between performance, size, and power consumption.
Yes. Every model supports intelligent target recognition, automatic tracking, and target positioning to improve operational efficiency.
All models support Ethernet, RS422, HD-SDI, onboard storage, and Ethernet video transmission for flexible integration.
The ZT068FA provides the longest ranging distance, supporting measurements of up to 10,000 meters.
