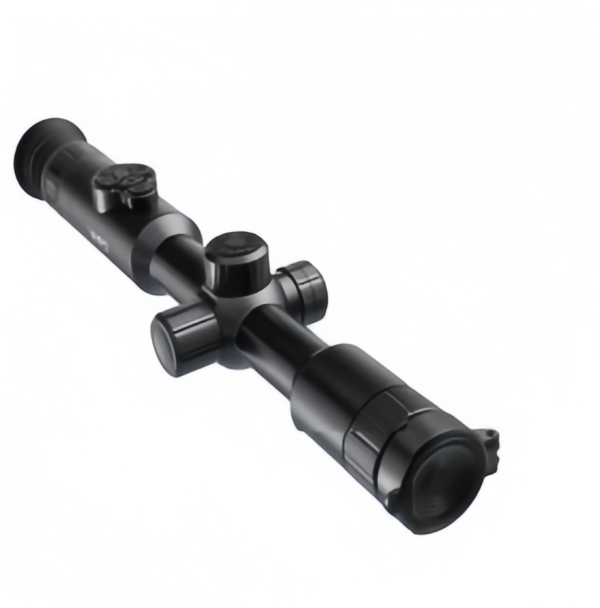

Modern thermal imaging technology enables reliable target observation in environments where conventional optics are limited by darkness, smoke, fog, or challenging weather. Our Thermal Imaging Rifle Scope Series combines advanced infrared sensors, intelligent image processing, and rugged construction to deliver stable thermal imagery for demanding outdoor applications.
Available in two configurations—TC23S Full-Size and TC22S Compact—these thermal scopes offer multiple detector resolutions, interchangeable focal lengths, optional laser rangefinding, Wi-Fi connectivity, onboard recording, and customizable display modes.
Whether used for professional security patrols, wildlife management, search missions, or outdoor observation, the series provides dependable performance with intuitive operation.
The Thermal Imaging Rifle Scope Series features:
| Specification | Details |
|---|---|
| Thermal Resolution | 384×288 or 640×512 |
| Pixel Pitch | 12μm |
| Lens Options | 35mm / 45mm Germanium Lens |
| Field of View (384) | 7.5°×5.7° / 5.9°×4.4° |
| Field of View (640) | 12.5°×10° / 9.8°×7.8° |
| Display Modes | Jungle / Recognition |
| Color Palettes | White Hot, Black Hot, Red Hot, Green Hot, Fusion, Iron Red |
| Picture-in-Picture | Supported |
| Video Interface | USB Type-C |
| Wi-Fi | Yes |
| Laser Rangefinder | Optional |
| Battery | Replaceable 18650 |
| Continuous Operation | More than 4 hours |
| Eye Relief | 48mm |
| Weight | 850g |
| Dimensions | 400–410 × 86 × 81mm |
| Specification | Details |
|---|---|
| Thermal Resolution | 384×288 or 640×512 |
| Pixel Pitch | 12μm |
| Lens Options | 25mm / 35mm / 45mm |
| Field of View (384) | 10.5°×7.9° / 7.5°×5.7° / 5.9°×4.4° |
| Field of View (640) | 17.5°×14° / 12.5°×10° / 9.8°×7.8° |
| Display Modes | Jungle / Recognition |
| Color Palettes | White Hot, Black Hot, Red Hot, Green Hot, Fusion, Iron Red |
| Picture-in-Picture | Supported |
| Video Interface | USB Type-C |
| Wi-Fi | Yes |
| Laser Rangefinder | Optional |
| Battery | Replaceable 18650 |
| Continuous Operation | More than 4 hours |
| Eye Relief | 48mm |
| Weight | 570–585g |
| Dimensions | 189–205 × 58 × 75mm |
Built around high-resolution infrared detectors with a 12μm pixel pitch, both models produce detailed thermal images with enhanced contrast and improved target recognition.
Thermal imaging technology allows users to detect heat signatures regardless of ambient lighting, making the system effective in:
The integrated image processing engine continuously optimizes image clarity for more comfortable observation over extended periods.
To improve viewing performance across different environments, users can switch between optimized scene profiles.
Enhances image contrast in vegetation-rich environments where temperature differences between targets and background may be limited.
Optimizes thermal detail for improved target identification during observation.
Operators can select from several display modes depending on environmental conditions or personal preference.
Available palettes include:
These viewing options help improve thermal contrast in different observation scenarios.
The integrated Picture-in-Picture function enlarges the center aiming area while maintaining the original wide viewing angle.
Benefits include:
Integrated Wi-Fi enables wireless communication with a compatible mobile application.
Functions include:
This wireless capability simplifies field documentation and post-mission review.
For applications requiring accurate distance estimation, both models can be equipped with an optional laser rangefinder.
The integrated ranging system provides:
The Thermal Imaging Rifle Scope Series is engineered for demanding field environments.
Features include:
The rugged construction helps maintain imaging performance even after repeated exposure to demanding operating conditions.
Both models use a standard replaceable 18650 lithium battery, providing convenient field replacement without specialized charging equipment.
Advantages include:
| Feature | TC23S | TC22S |
|---|---|---|
| Design | Full-size configuration | Compact configuration |
| Weight | 850g | 570–585g |
| Length | 400–410mm | 189–205mm |
| Lens Choices | 35mm / 45mm | 25mm / 35mm / 45mm |
| Battery | 18650 | 18650 |
| Operating Time | >4 Hours | >4 Hours |
| Wi-Fi | Yes | Yes |
| Picture-in-Picture | Yes | Yes |
| Optional Rangefinder | Yes | Yes |
The Thermal Imaging Scope Series is suitable for a wide range of professional observation tasks.
Thermal observation for perimeter monitoring and low-light surveillance.
Locate heat signatures during nighttime or reduced-visibility conditions.
Observe animals without relying on visible illumination.
Support navigation and observation in forests, mountains, and remote environments.
Assist in detecting temperature anomalies during equipment inspections.
| Feature | Benefit |
|---|---|
| High-Resolution Thermal Sensor | Clear thermal imaging in low visibility |
| 12μm Pixel Technology | Improved image detail |
| Multiple Lens Options | Flexible observation distances |
| Picture-in-Picture | Enhanced viewing precision |
| Wi-Fi Connectivity | Wireless image transmission |
| Photo & Video Recording | Convenient documentation |
| Replaceable Battery | Continuous field operation |
| Rugged Construction | Reliable outdoor performance |
We support OEM and project customization for distributors, integrators, and professional equipment suppliers.
Available services include:
The TC23S is a larger full-size model with 35mm and 45mm lens options, while the TC22S features a more compact design with an additional 25mm lens option for users who prefer a lighter system.
Yes. Thermal imaging detects infrared radiation rather than visible light, allowing observation even in total darkness or reduced-visibility environments such as smoke and fog.
Yes. Integrated Wi-Fi allows connection with a compatible mobile application for live viewing, recording, and system control.
Both models operate for more than four hours using one replaceable 18650 rechargeable battery.
A laser rangefinder is available as an optional configuration for users requiring distance measurement capability.
