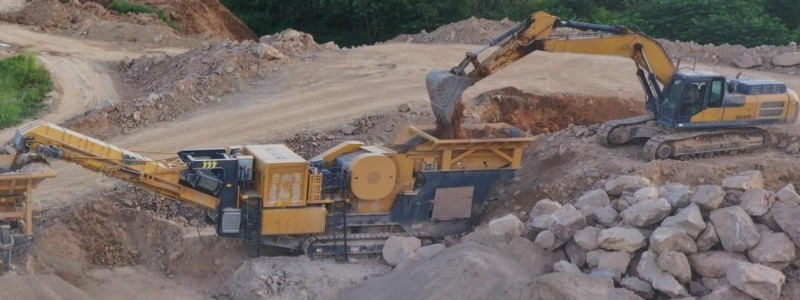

The XPE0912 Mobile Jaw Crusher is a heavy-duty Tracked Jaw Crusher designed for high-output primary crushing in mining, quarrying, aggregate production, and construction waste recycling. Featuring a hybrid diesel-electric drive system, intelligent automation, and exceptional mobility, this Mobile Crushing Plant delivers outstanding productivity while reducing operating costs and environmental impact.
Номер товара :
XPE0912With a 500 t/h feeding capacity and a robust jaw crusher unit, the XPE0912 efficiently processes hard rock, natural stone, recycled concrete, and mining ores, making it an ideal Primary Jaw Crusher for demanding job sites.
The XPE0912 combines powerful crushing performance with advanced control technologies, allowing operators to achieve higher throughput, lower fuel consumption, and greater operational flexibility.
Key advantages include:
Up to 500 t/h processing capacity
Hybrid diesel-electric drive system
Intelligent continuous feeding
Hydraulic discharge adjustment
Wireless remote operation
Low fuel consumption
Reduced dust and noise emissions
Compact transport dimensions
Fast relocation between job sites
Whether used as a Crawler Jaw Crusher, Portable Jaw Crusher, or Mobile Aggregate Crusher, the XPE0912 is built for reliable performance in the most demanding environments.
| Parameter | Specification |
|---|---|
| Feeding Capacity | 500 t/h |
| Maximum Feed Size | 700 mm |
| Feeding Height | 4472 mm |
| Feeding Width | 2800 mm |
| Hopper Capacity | 7 m³ |
The high-capacity feeding system ensures continuous material flow and stable production, even when handling large rock sizes.
| Parameter | Specification |
|---|---|
| Width × Length | 1325 × 4825 mm |
| Speed | 960 rpm |
The heavy-duty vibrating feeder distributes material evenly into the crusher, improving crushing efficiency and reducing unnecessary wear.
| Parameter | Specification |
|---|---|
| Drive System | Engine–Generator–Motor / Motor Pump |
| Engine Power | 364 kW @ 1500 rpm |
| Generator | 500 kVA |
| Emission Standard | Stage III |
The XPE0912 is equipped with an advanced Hybrid Mobile Crusher powertrain, allowing operators to switch seamlessly between diesel and external electric power.
Benefits include:
Lower fuel consumption
Reduced emissions
Faster power response
Lower operating costs
Flexible operation across different job sites
This hybrid configuration also enables the machine to function as an efficient Electric Jaw Crusher or Diesel Electric Crusher, depending on site power availability.
| Parameter | Specification |
|---|---|
| Drive Mode | Motor Drive |
| Feed Opening | 870 × 1200 mm |
| Discharge Range | 70–200 mm |
The optimized jaw chamber provides powerful primary crushing with excellent reduction ratios, making it suitable for processing hard rock and recycled materials.
| Parameter | Specification |
|---|---|
| Maximum Climbing Ability | 14° |
| Travel Speed | 1 km/h |
| Fuel Tank Capacity | 800 L |
The tracked undercarriage allows the crusher to move safely across rough terrain, improving productivity on mining and quarry sites.
| Parameter | Specification |
|---|---|
| Length | 17,235 mm |
| Width | 2,980 mm |
| Height | 3,960 mm |
| Weight | 72,000 kg |
Compact transport dimensions simplify relocation between projects while minimizing transportation costs.
The imported engine combined with an efficient electric drive provides rapid power delivery and excellent energy efficiency.
Operators can choose between diesel or external electric power to optimize fuel consumption and reduce environmental impact.
The automatic feeding system continuously monitors crusher load and material level, adjusting feed speed in real time.
Advantages include:
Higher productivity
Stable material flow
Reduced crusher blockage
Lower wear costs
Improved equipment protection
Hydraulic adjustment enables fast and precise control of the discharge opening without manual intervention.
Benefits include:
Faster product size changes
Reduced downtime
Improved production flexibility
Simplified operation
The XPE0912 incorporates an advanced digital control system with:
Wireless remote control
One-touch start and shutdown
Graphical touchscreen interface
Intelligent fault diagnosis
Online equipment monitoring
Optional mobile App
Remote data management
These features improve operational efficiency while reducing unplanned downtime.
Designed for sustainable operation, the crusher includes:
Low-pressure dust suppression system
Noise reduction technology
Magnetic separator for metal removal
Efficient vibration damping
Ground protection crawler tracks
These systems enhance operator safety while reducing environmental impact.
Customize the XPE0912 to match your project requirements.
| Category | Available Options |
|---|---|
| Feeding & Screening | Feed Hopper, Pre-Screener, Natural Fines Conveyor |
| Discharge | Extended Main Conveyor, Hydraulic Adjustment |
| Automation | Wireless Remote, Touchscreen, Online Monitoring, Camera System, Mobile App |
| Maintenance | Lubrication System, Dust Removal, Low-Temperature Start Package, Hydraulic Breaker |
| Power | External Power Supply, 16A / 32A Socket |
| Undercarriage | Ground Protection Tracks |
| Wear Parts | RT Jaw Plates, FT Coarse-Tooth Plates, Side Wedge Plates, Grizzly, Screen Mesh |
As a professional Aggregate Crusher and Quarry Crusher, the XPE0912 is ideal for producing high-quality aggregates used in infrastructure, road construction, and commercial building projects.
Suitable materials include:
Limestone
Granite
Basalt
Sandstone
River stone
Gravel
The XPE0912 serves as a reliable Mining Crusher and Mobile Crusher for Mining, processing various ores and hard rock in open-pit and quarry applications.
Designed as a Construction Waste Crusher, the machine efficiently crushes:
Reinforced concrete
Demolition waste
Bricks
Concrete blocks
Building debris
Recovered materials can be reused as recycled aggregates for sustainable construction projects.
The XPE0912 also functions as a high-capacity Concrete Recycling Crusher, converting demolition waste into valuable reusable materials while reducing landfill disposal.
Our global service network provides comprehensive lifecycle support to maximize equipment uptime and productivity.
Service commitment includes:
15-Minute Response – Immediate technical assistance
2-Hour Support – Rapid remote or on-site response
24-Hour Resolution Target – Fast troubleshooting and issue resolution
Support services include:
Equipment commissioning
Operator training
Preventive maintenance
Spare parts supply
Technical consulting
Remote diagnostics
Long-term lifecycle support
| Advantage | Customer Benefit |
|---|---|
| High Capacity | Processes up to 500 t/h for demanding primary crushing applications |
| Hybrid Drive | Flexible diesel and electric operation lowers operating costs |
| Intelligent Automation | Automatic feeding, remote control, and real-time diagnostics |
| Environmental Protection | Reduced dust, noise, and fuel consumption |
| Excellent Mobility | Tracked design enables quick relocation across job sites |
| Global Service | Comprehensive technical support and worldwide after-sales service |
The XPE0912 is suitable for medium- to high-hardness materials, including granite, basalt, limestone, sandstone, recycled concrete, construction waste, and a wide range of mining ores.
Yes. The hybrid drive system supports external power input, allowing the machine to operate solely on electricity where site infrastructure is available, helping reduce fuel consumption and emissions.
Absolutely. Its robust jaw crusher, high-capacity feeding system, and tracked mobility make it an excellent Mobile Crusher for Mining, quarry operations, and aggregate production.
Standard equipment includes RT jaw plates and side wedge plates. Optional FT coarse-tooth jaw plates, grizzly bars, perforated plates, and screen mesh are available to match different materials and production requirements.
Yes. We offer complete support, including installation, commissioning, operator training, spare parts supply, preventive maintenance, technical consulting, and global after-sales service.
