The XD123 Vibratory Roller is a high-performance Double Drum Vibratory Roller engineered for asphalt paving, highway construction, municipal roads, airport runways, and large-scale infrastructure projects. Combining intelligent compaction technology, exceptional operator visibility, and optimized weight distribution, this advanced Road Roller delivers outstanding surface smoothness, consistent density, and high productivity across a wide variety of paving applications.
Designed for professional contractors and road construction companies, the XD123 offers reliable performance, low operating costs, and superior compaction quality for both thin and thick asphalt layers.
Modern road construction requires compaction equipment capable of delivering uniform density, excellent surface finish, and efficient operation.
The XD123 combines advanced vibration technology, ergonomic controls, and intelligent machine management to improve paving quality while reducing maintenance and fuel consumption.
Key advantages include:
Excellent asphalt compaction performance
Uniform density across the full drum width
Intelligent CAN-BUS control system
Large-capacity water spraying system
Superior operator visibility
Low maintenance requirements
High fuel efficiency
Reliable performance in demanding applications
Whether used as an Asphalt Roller, Tandem Roller, or Road Compaction Machine, the XD123 is designed to maximize productivity and pavement quality.

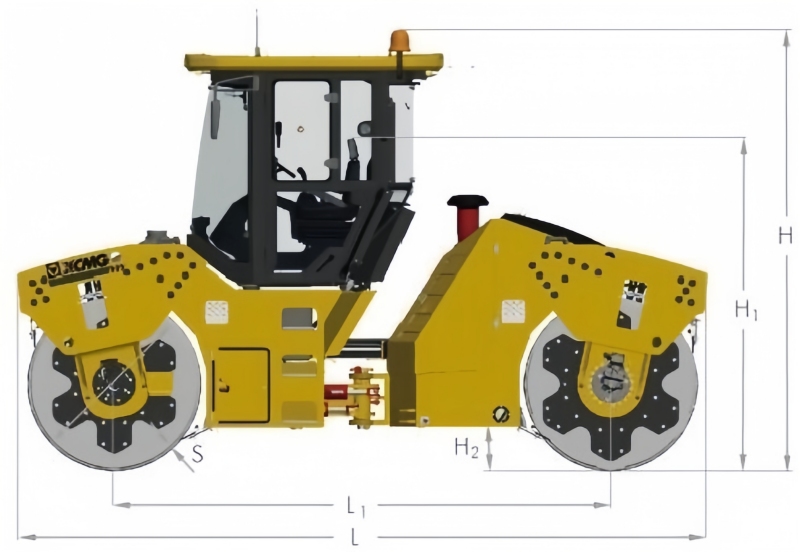

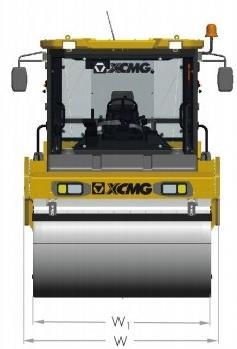

| Parameter | Specification |
|---|---|
| Overall Length | 5,146 mm |
| Overall Width | 2,336 mm |
| Overall Height | 3,076 mm |
| Wheelbase | 3,700 mm |
| Ground Clearance | 310 mm |
| Drum Diameter | 1,300 mm |
| Drum Width | 2,130 mm |
The compact design provides excellent maneuverability while maintaining high compaction performance on highways, urban roads, and confined construction sites.
| Parameter | Specification |
|---|---|
| Operating Weight | 12,300 kg |
| Front Drum Weight | 6,150 kg |
| Rear Drum Weight | 6,150 kg |
| Static Linear Load | 283 / 283 N/cm |
The balanced weight distribution ensures consistent pressure across both drums, resulting in uniform compaction and a smoother finished pavement.
The ergonomic rotary operator console provides outstanding visibility in every working direction.
Benefits include:
Precise edge compaction
Easier maneuvering
Improved job site safety
Reduced operator fatigue
Greater control during paving operations
The adjustable seat and console create a comfortable working environment during extended operating hours.
The optimized frame design centers both static and dynamic forces directly over the drums.
This delivers:
Consistent compaction density
Improved asphalt smoothness
Reduced surface segregation
Better pavement durability
Higher overall paving quality
As a professional Asphalt Compactor, the XD123 produces smooth, high-quality road surfaces that meet modern construction standards.
The high-strength drums are equipped with long-life vibration bearings engineered for continuous heavy-duty operation.
Advantages include:
Reliable vibration performance
Extended service life
Reduced maintenance
Lower lifecycle costs
Excellent durability under demanding conditions
The advanced water management system ensures consistent drum lubrication during asphalt compaction.
Features include:
Adjustable spray intervals
1,000 L water tank
Triple-stage filtration
Uniform water distribution
Reduced nozzle blockage
The high-capacity water tank minimizes refill frequency, improving productivity on large paving projects.
The integrated CAN-BUS control system continuously optimizes machine performance.
Functions include:
Intelligent acceleration control
Smooth deceleration
Automatic engine throttle management
Smart cooling system
Fuel-saving operation
Real-time machine diagnostics
These technologies improve compaction quality while lowering fuel consumption and operating costs.
The engine and hydraulic components are positioned for convenient access, simplifying routine inspection and servicing.
Maintenance benefits include:
Faster daily inspections
Reduced downtime
Easy filter replacement
Simplified servicing
Lower maintenance costs
The XD123 is an ideal Highway Roller for compacting asphalt surface courses, binder courses, and wearing courses on expressways and national highways.
As a versatile Road Roller, the machine delivers smooth, durable pavement for:
Municipal roads
City streets
Residential developments
Commercial infrastructure
The XD123 provides reliable compaction for:
Airport runways
Taxiways
Industrial parks
Logistics centers
Container terminals
Parking facilities
In addition to asphalt paving, the machine functions as a Compaction Roller for granular road bases and stabilized sub-base materials.
As a professional Pavement Roller, the XD123 performs efficiently on:
Thin asphalt layers
Thick asphalt lifts
Road rehabilitation
Overlay projects
New highway construction
| Advantage | Customer Benefit |
|---|---|
| High Productivity | Optimized vibration system delivers faster compaction with fewer passes |
| Superior Surface Finish | Balanced drum loading improves pavement smoothness |
| Low Operating Costs | Intelligent cooling and throttle control reduce fuel consumption |
| Excellent Reliability | Long-life vibration bearings minimize maintenance |
| Operator Comfort | Rotary console provides outstanding visibility and ergonomic operation |
| Versatile Applications | Suitable for highways, airports, municipal roads, and industrial projects |
| Easy Serviceability | Convenient maintenance access reduces downtime |
Our worldwide service network provides comprehensive lifecycle support to maximize equipment availability and long-term productivity.
Support services include:
15-Minute Response – Immediate technical assistance
2-Hour Support – Rapid remote or on-site service
24-Hour Resolution Target – Fast troubleshooting and repair
Equipment commissioning
Operator training
Preventive maintenance
Spare parts supply
Remote diagnostics
Technical consulting
The XD123 is designed for hot mix asphalt (HMA), asphalt pavement, granular road base, stabilized sub-base materials, and other road construction applications.
Different vibration frequencies allow operators to optimize compaction performance for varying asphalt thicknesses. Higher frequencies improve surface smoothness on thin lifts, while lower frequencies provide greater compaction energy for thicker pavement layers.
The intelligent spraying system uses adjustable spray intervals and triple-stage filtration to keep the drums clean, prevent asphalt adhesion, and maintain consistent compaction quality throughout the project.
Yes. The machine is widely used for highways, airports, municipal roads, logistics parks, and other large-scale paving projects requiring high productivity and consistent compaction performance.
Yes. We offer equipment commissioning, operator training, technical support, preventive maintenance, spare parts supply, and comprehensive global after-sales service through our international support network.
