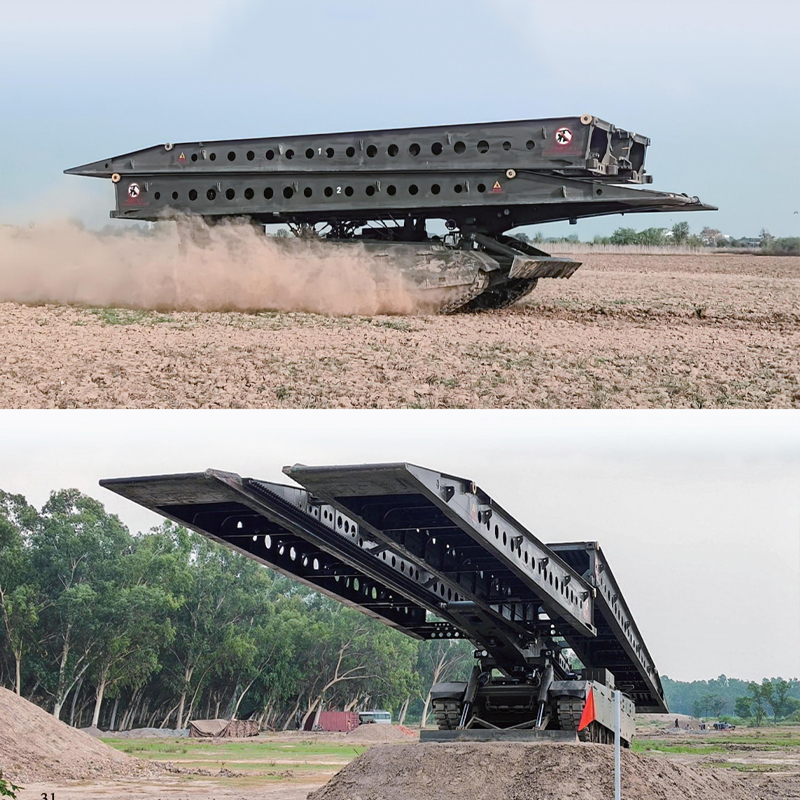

Scissor Type HZT Armored Vehicle Launched Bridge

• Scissor-Type Folding Efficiency: Adopts a compact scissor-folding structure that minimizes storage space on the armored chassis; when deployed, the mechanism unfolds smoothly to form a stable bridge, balancing portability and rapid deployment.​

• Dual-Model Load Adaptability: Offers two models to match different tactical needs—HZT26 with MLC70 load capacity (for heavy armored units) and HZT21 with MLC50 load capacity (for light-to-medium equipment), covering diverse battlefield equipment crossing demands.​

• Superior Terrain Tolerance: Supports a maximum allowable height difference of 4m—adapts to deep trenches or uneven battlefield terrain (e.g., crater-trench combinations) that standard bridging systems struggle to handle.​

• Low Manpower Reliance: Both models require only 2 operators to complete launching and retrieval—aligns with frontline engineering units’ lean personnel configuration, reducing battlefield casualty risks.

Specification (HZT Scissor-Type Armored Vehicle Launched Bridge)​

• Vehicle Type: HZT26 Scissor-Type Armored Vehicle Launched Bridge​

• Curb Weight: 48t (optimized for heavy-load support and armored protection)​

• Loading Capacity: MLC70 (safely supports main battle tanks, self-propelled artillery)​

• Vehicle Dimensions (L×W×H): 14.5m × 3.4m × 3.85m​
• Environmental Adaptability: Maximum Allowable Height Difference 4m​

• Number of Operators: 2​

• Vehicle Type: HZT21 Scissor-Type Armored Vehicle Launched Bridge​

• Curb Weight: 36t (lighter chassis for faster battlefield maneuverability)​

• Vehicle Dimensions (L×W×H): 11.8m × 3.32m × 3.5m (compact for narrow battlefield paths)​

• Bridge Specifications: Weight 6.6t; Length 21m; Span Width 3.52m (wider passage for light equipment)​

• Operation Time: Erection/Retrieval Time 47min (faster than HZT26 for rapid response)​

• Environmental Adaptability: Maximum Allowable Height Difference 4m​

• Number of Operators: 2​

• Heavy Armored Unit Trench Crossing (HZT26): Deploys with main battle tank brigades to span deep anti-tank trenches (up to 4m height difference)—MLC70 load capacity ensures safe passage of MBTs, while the scissor structure maintains stability for heavy equipment.​

• Light Armored Rapid Response (HZT21): Accompanies light armored or rapid reaction units—36t lightweight chassis keeps pace with fast maneuvers, 47min quick deployment supports urgent trench-crossing needs (e.g., flanking operations).​

• Deep Trench Battlefield Support: Handles deep trenches (common in fortified enemy positions) with 4m height difference tolerance—scissor 展开 forms a stable bridge deck, avoiding equipment tilting or passage failure.​

• Mixed Equipment Convoy Crossing: HZT26 and HZT21 work in tandem for mixed armored convoys—HZT26 supports heavy tanks, HZT21 serves light transport vehicles, ensuring the entire convoy crosses trenches without equipment segregation.​

• Tactical Customization: Offers model-specific upgrades—HZT26 adds enhanced armor for high-threat zones; HZT21 integrates desert dust-proofing or cold-region anti-freeze components for extreme battlefield environments.​

• Scissor Mechanism Training: Provides on-site training for 2-operator teams, focusing on scissor folding/unfolding operations, hydraulic system maintenance, emergency troubleshooting (e.g., stuck 展开 arms), and armored chassis control.​

• Dedicated Spare Parts: Supplies scissor-structure-specific components (folding arms, hydraulic cylinders, locking pins) and armored chassis repair kits—portable maintenance packs enable frontline rapid fixes.​

• Military Compliance Certification: Delivers MLC load test reports (MLC70 for HZT26/MLC50 for HZT21), scissor mechanism durability data, and 4m height difference performance validation—meeting global military armored bridging procurement standards.
